ArchivesSpace Instances - Containers and Digital Objects

ArchivesSpace Instances are used to indicate the box/folder number (for physical materials) or filepath/URL (for digital materials) of the materials being described. Generally, Instances are added at the lowest level of description -- that is, to the level of description that corresponds to manifestations of the materials being described.

Adding Instances

Instances can be added by clicking the "Add Container Instance" or "Add Digital Object" button as appropriate within the Instances sub-record of an Accession, Resource, or Archival Object.


Instances will generally only be added to Archival Objects, not Resources or Accessions. Exceptions include collections for which only Resource-level description exists.

Container Instances

Container Instances are used to identify the physical container in which materials are located. Generally, this will be something like "Box 1," "Box 2," "Folder 12," etc.

Instance Type

Container Instances require an Instance Type, selected from a controlled value list drop down menu. This should almost always be Mixed Materials, but can be a more specific material type if known (e.g., Audio, Text, etc.) Instance Type is not the ideal place to indicate this information, however, and this information should generally be indicated elsewhere (in an Extent sub-record, a Physical Description note, etc.)

Top Container

Container Instances require a linked Top Container record. Top Containers are standalone record-types in ArchivesSpace that can be linked to from one or more Accessions, Resources, or Archival Objects. In this way, Top Containers are similar to Agent and Subject records -- they provide a method for managing the same entity in one record and linking to it where necessary. This allows for many collection management activities to be undertaken in ArchivesSpace -- containers can be barcoded, locations can be managed, boxes can be renumbered, and so on. Therefore, it is important that you create and link to the appropriate Top Container record within Container Instances. Avoid creating duplicate Top Container records.

Top Containers will generally be unique to a given Resource and will be numbered sequentially beginning with 1. In some cases, a Top Container may be shared between Resource (e.g., a single box that holds several small collections)

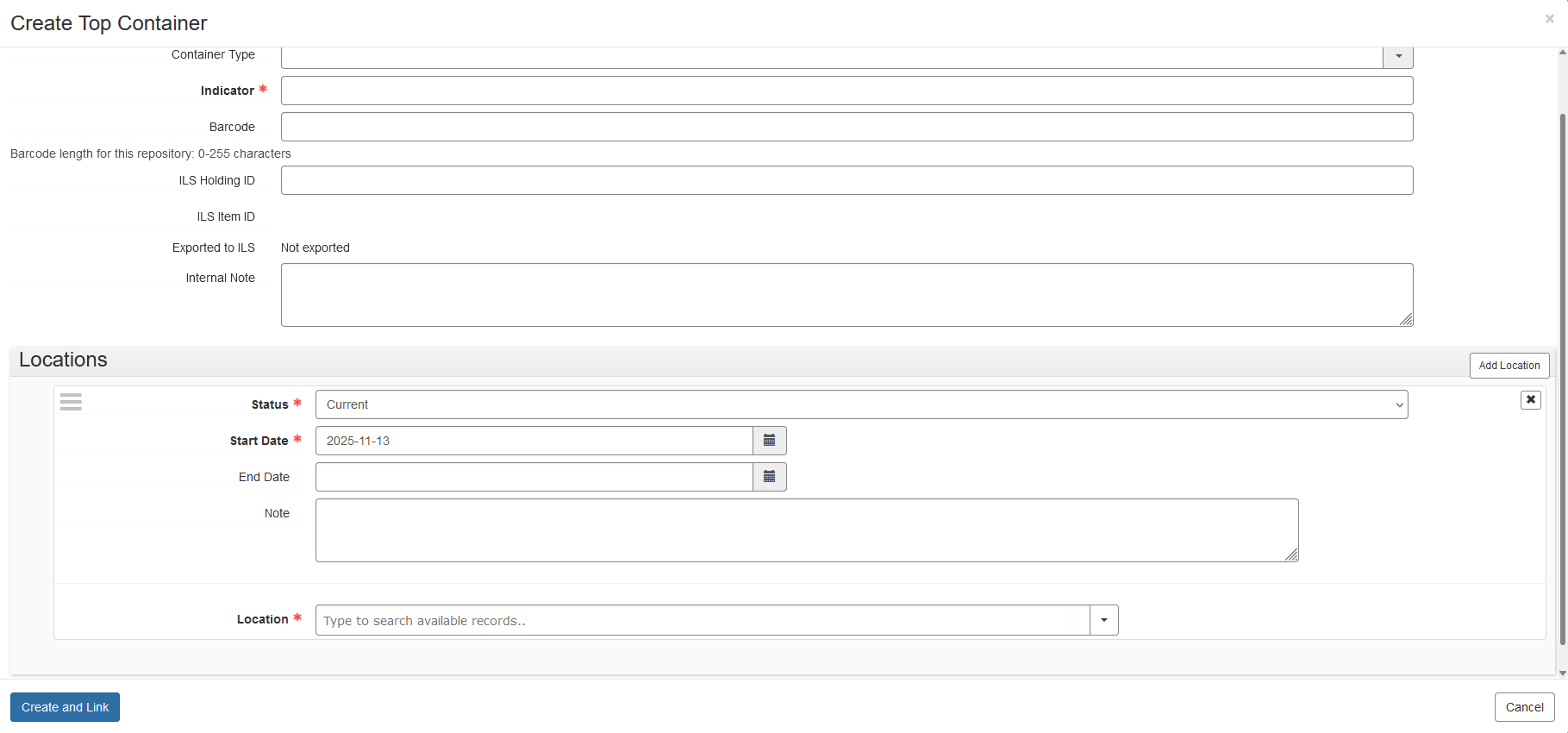

Creating a Top Container

Top Containers need only be created once for each distinct Top Container. To create a Top Container, click the down arrow next to the Top Container field in the Container Instance sub-record and select "Create." A blank Top Container template will appear. Enter the following information:

  • Container Type: Box, Folder, Volume, etc.
  • Indicator: The container number (1, 2, 3... 54, 55, etc.)

Then click the "Create and Link to Top Container" button

Create Top Container

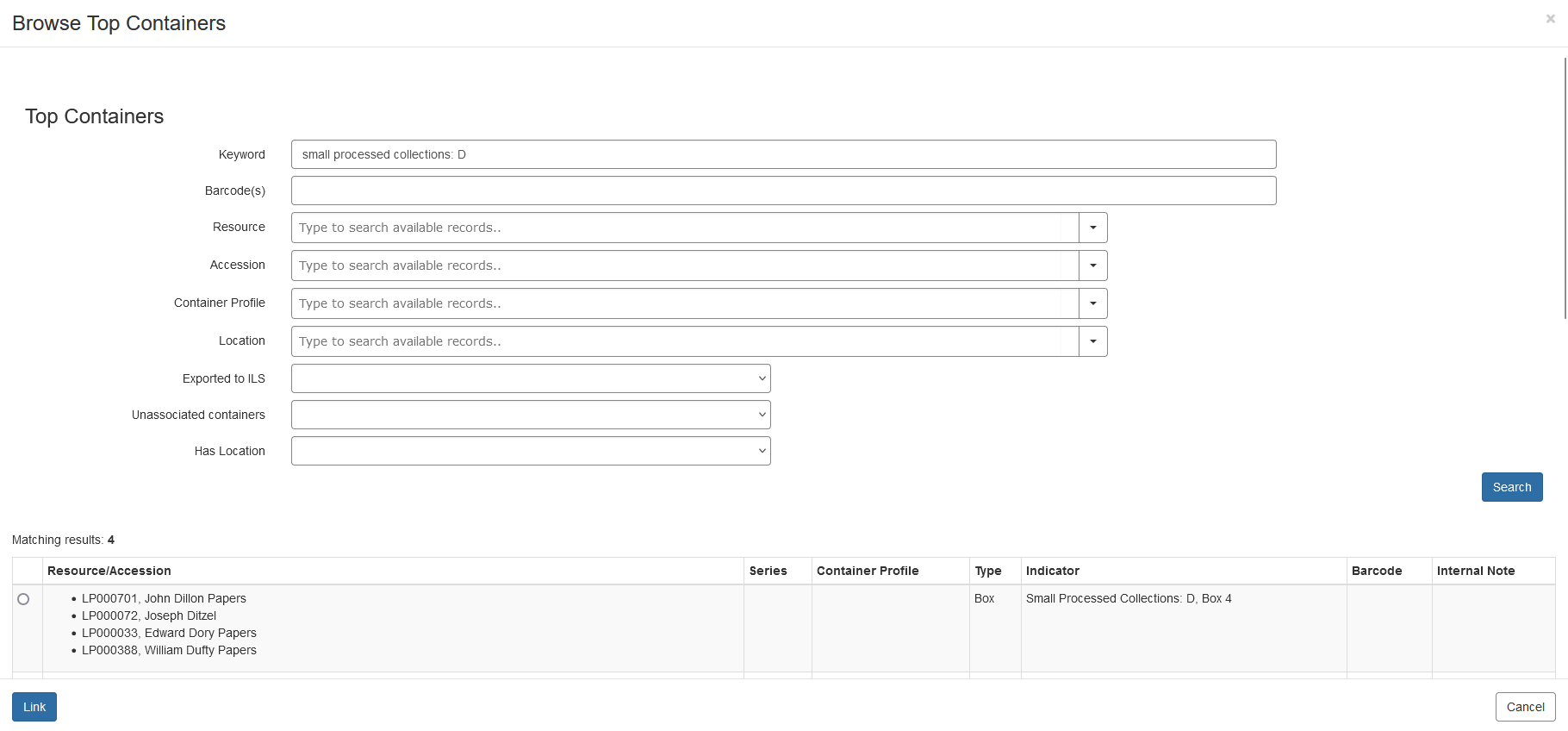

Linking a Top Container

Once a Top Container has been created, it should then be linked to all subsequent Container Instances to which it applies. To link an existing Top Container record, search in the Top Container search box within the Container Instance for the container type and number and select the appropriate container from the displayed results.

Link Top Container

Child Containers

Child containers are used within Container Instances to indicate second-level containers in which the material being described is located. Child containers will most commonly be used for indicating specific folders within boxes, but may also be used to indicate individual items, volumes, audio cassettes, and so on. Child containers require the following information:

  • Child Type: Folder, Item, etc.
  • Child Indicator: The child container number (1, 2, 3, etc.). If describing multiple folders at once, this can also be a range of numbers (e.g., 3-7)

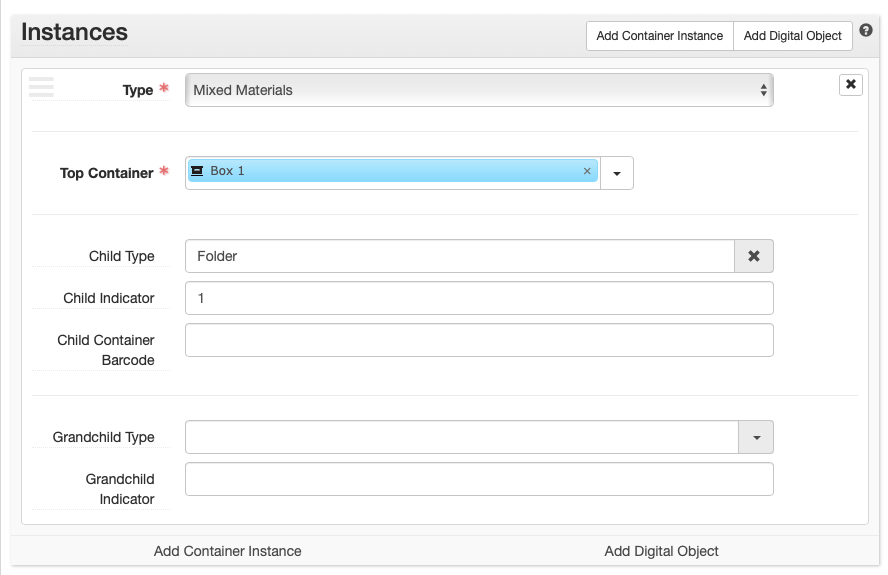

Container Instance

ArchivesSpace allows for adding grandchild containers to describe yet another level of container-within-container; these will rarely be used.

Digital Object Instances

Digital Object Instances are used to associate links to digital content (e.g., a digitized PDF or image on the Reuther's file server, digital materials in WSULS Digital Collections, an archived website in Archive-It, etc.). Digital Object Instances require a linked Digital Object record, of which the Reuther uses a minimal implementation to effectively create a link from an Archival Object to its online manifestation.


When adding Digital Object instances for digitized materials, ensure that a Resource-level Existence and Location of Copies note has been added.

Creating a Digital Object

To create and associate a Digital Object with its relevant Archival Object, first click the "Add Digital Object" button in the Instances subrecord, then click the down arrow next to the Digital Object search box and select "Create." A blank Digital Object template will appear. The Digital Object template features many of the same metadata fields as an Archival Object. Resist the temptation to use as many of the fields as possible and instead add only the following, clicking the "Create and Link to Digital Object" button when finished:

Basic Information

  • Title: Copy and paste the Archival Object display string (title and dates) and, for now, append (Digital) to the title.
  • Identifier: A Digital Object record requires a unique identifier. For simplicity's sake, copy and paste the Digital Object URL as the Identifier. Alternatively, for digitized materials named according to the Reuther's filenaming conventions, you may use the Digital Object's filename (without the file extension). Digital objects created through automated processes may use a randomly generated UUID.

File Versions

File Versions subrecords are where links to Digital Objects are maintained. The first File Version is the link that will appear on the ArchivesSpace Public User Interface, so ensure that a File Version with the correct link to the item is added. To begin, click the "Add File Version" button.

  • File URI: Enter the link to the digital object
  • Publish?: Check the Publish? box to ensure that the link displays on the PUI

Do not add any additional information at this time. It is possible that the Reuther will make use of multiple File Versions in the future (e.g., to account for preservation and access copies), at which time additional fields may be used and this documentation will be updated.

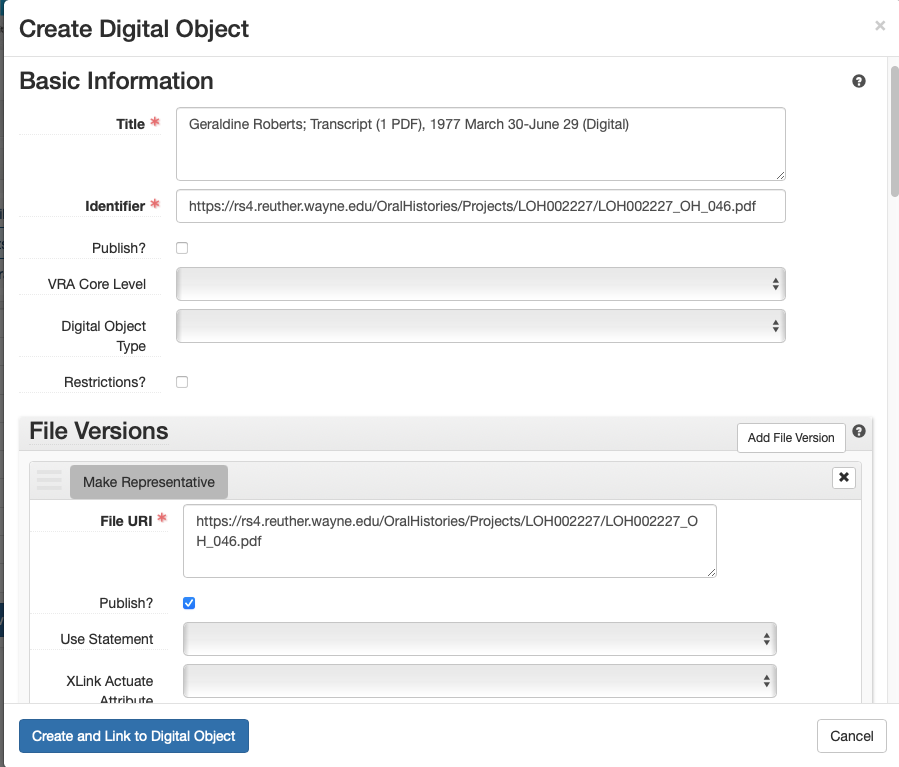

Create Digital Object

The above screenshot shows the entire Digital Object record created for the following Archival Object:
